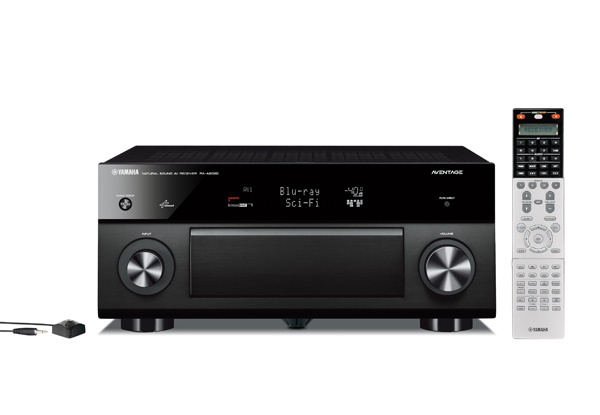

Yamaha RX-A2020 AVENTAGE AV Receiver

AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance

The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonizing traditional and advanced technologies, every factor that affects sound quality - from materials and parts to construction, layout, vibration damping (unique foot) and "fine-tuning" the sound - is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound so that listeners can enjoy a truly high-class sound studio experience at home.

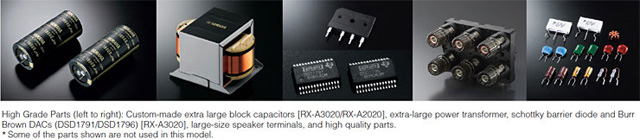

High Quality Parts Allow Sound Tuning for Optimum Performance

Every single part in an AV receiver affects the sound quality. For the AVENTAGE models, extra time was taken to find (or develop) exactly the parts wanted and to test them together in prototype units. This testing process allowed sound technicians to, in effect, "tune" the receiver's sound in order to achieve the highest performance possible.

H-shaped Cross Member Frame

The interior of the receiver is reinforced with cross members in an "H" shape to provide an extremely rigid and stable frame. This reduces chassis vibration to virtually zero even during high volume output (seemingly minor vibrations can affect the sound), maintaining the highest audio quality.

Symmetrical Power Amplifier Layout

This is just one of the many design details that all combine to create a superior receiver. The interior of the unit has been precisely planned, circuit-routed and built so that the left and right channels are physically and electrically isolated. This naturally maximizes channel separation, but also greatly improves signal-to-noise ratio and also helps to achieve a wide, open sound stage.

Anti-Resonance Technology Wedge Helps to Ensure that Vibrations Do Not Affect Sound Quality

The Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the center of the unit. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers.

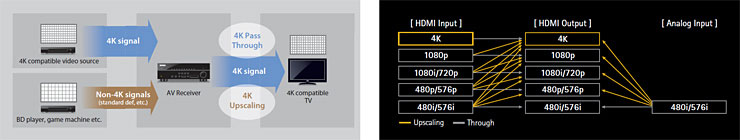

4K Pass-through and Upscaling Supports Latest High Resolution Video Formats

This AV receiver's HDMI input/output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.

HQV Vida Processor for High Resolution HD and SD Images

This AV receiver optimizes the video signals they send to the TV by using the most advanced HQV (Hollywood Quality Video) Vida processor. Supporting both SD and HD sources, this processor employs powerful noise reduction functions that even improve low-quality sources. Additional resolution enhancement functions make SD content look like HD.

HDMI with 3D and Audio Return Channel

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

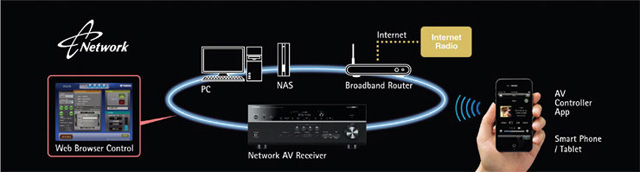

Network Functions

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet radio and operate your system via WebBrowser Control. The AV Controller App (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android devices.

AV Controller App for Easy, Convenient Operation

This AV Receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Android Market to control power on/off and volume, select input and DSP modes and operate other functions from an iPod, iPhone, iPad or Android phones. A tablet version is also available.

AirPlay Allows Streaming Music to AV receiver

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.

*Some models don't support album art display.

USB Digital Connection for iPod, iPhone and iPad on the Front Panel

A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected, even if the receiver is off. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone/iPad music playback functions.

Versatile Zone Control

HDMI Zone B for audio/video streaming to another room (same content as main room)
Zone 2/3 on/off and control on front panel
Zone GUI (song/station selection, album cover art display, Zone tone controls/Zone balance, short message)
Zone 2/3 video assign (component, S-Video, composite)
System backup/recovery function
Zone mono, Zone volume, tone controls and balance
Party Mode

Input Selection in HDMI Standby Through Mode

When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray™ Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There's no need to turn on the AV receiver in order to switch sources.

HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like skip and stop.

(All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.)

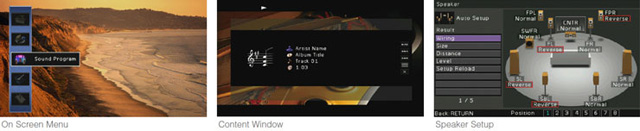

Advanced Multi-language GUI On-screen Display

Yamaha's latest graphical user interface has a high resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of seven languages: English, French, German, Japanese, Russian, Spanish and Chinese and can be displayed over both normal and 3D pictures.

Extra-convenient SCENE PLUS

The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programs. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, GUI and even from the AV Controller App.

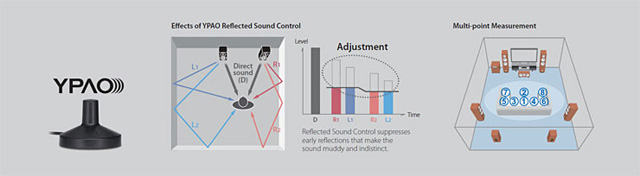

YPAO R.S.C. (Reflected Sound Control) Sound Optimization

YPAO R.S.C. analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.

Subwoofer Trim for Improved Sound Imaging

The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Dialogue Lift and Dialogue Level Adjustment for Natural Dialogue and Vocals

Dialogue Lift raises the sound of dialogue from the center speaker to a position in the center of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for Presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

HD Audio with CINEMA DSP 3D and Virtual Presence Speaker

CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.

Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialog and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.

ECO mode lowers power consumption by 20%*

Yamaha's new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.

* Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down

Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.

Low Standby Power Consumption

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.3W in IR Standby mode (6.0W in HDMI Standby Through mode, 2.2W in Network Standby mode).

Intelligent Amp Assign

Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 9.1-channel system, when Zone 2 is off, all 9.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two Surround Back channels will be directed to the two speakers in Zone 2, and the Main Zone will receive 7.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Rear Presence speakers will be powered and not the two Surround Back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there's no need to switch the speaker cables on the rear of the receiver-one more way Yamaha makes your life a little easier.

Aluminum Front Panel Offers Visual and Aural Benefits

All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminum front panel and silky touch volume/selector knobs. The aluminum front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

Other Notable Audio Features

9-channel powerful surround sound 140W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2ch driven)
155W per channel (8 ohms, 1 kHz, 0.9% THD, 2ch driven)
HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
Heat sink with anti-vibration and anti-thermal properties
Rigid bottom frames
DAC on pure ground circuitry
High speed thermal feedback power amplifier
Ultra low jitter PLL circuitry helps optimize sound imaging
Detachable power cable for easier installation (also allows cable upgrade)
Intelligent assignable amplifiers for surround back - Front Presence or Zone 2
Phono input for vinyl playback

Other Notable Advance Features

HDMI front panel input for devices such as camcorders and digital cameras
DLNA 1.5 certified
HD Radio^TM
iPod/iPhone/iPad song titles displayed in English and Western European languages on the front panel and on-screen display
Ability to store and choose between two speaker setting patterns
Flexibly assignable component video and optical/coaxial (except Video Aux) inputs allow a wide range of source components
Audio delay for adjusting lip-sync (0-500 ms)
Newly designed preset remote unit
Background Video feature (for tuner and Net)

Other Notable Surround Realism

HD Audio decoding with CINEMA DSP 3D (23 DSP programs)
Virtual dialogue lift even without use of Presence speakers
Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence Speakers
Channel expandability with external amplifier (nine channel expandability (bi-amping))
Adaptive DSP level
