Audio Features

• 7-channel powerful surround sound
  • 95W per Channel (8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)
  • 110W per Channel (8 ohms, 1 kHz, 0.9 % THD, 2 ch driven)
• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
• Aluminum front panel for enhanced rigidity
• Discrete amp configuration
• Pure Direct for pure HiFi sound quality enjoyment
• Burr-Brown 192 kHz/24-bit DACs for all channels
• Low jitter PLL circuitry helps optimize sound imaging
• Assignable amplifiers for bi-amp connection

4K Pass-Through and Upscaling Supports Latest High Resolution Video Formats

This AV receiver's HDMI input/output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.

HDMI with 3D and Audio Return Channel

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

High Quality Video Processing with Edge Adaptive Deinterlacing

In ordinary deinterlacing, pixels in areas of movement are interpolated by upper and lower ranges. This causes jaggies in diagonal lines. Edge adaptive deinterlacing detects the direction of the line and interpolates the pixels optimally.

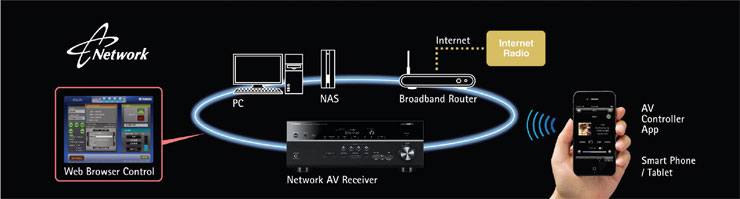

Network Functions

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio and operate your system via Web Browser Control. The AV Controller app (from iTunes App Store or Android Market) lets you control various functions from your iPod, iPhone, iPad or Android phones.

Optional Wireless Network Adapter

The YWA-10 offers:

• IEEE 802.11b/g/n compatible
• Auto setup by WPS (WiFi Protected Setup)
• Manual setup by PC
• 2 LAN ports to support up to 2 network products
• Powered by the DC out USB connection on the back of the HTR-7065

AV Controller App for Easy, Convenient Operation

This AV Receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Android Market to control power on/off and volume, select input and DSP modes and operate other functions from an iPod, iPhone, iPad or Android phones. A tablet version is also available.

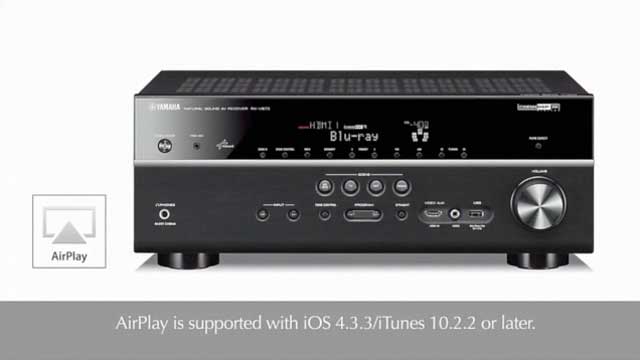

AirPlay Allows Streaming Music to AV receiver

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

USB Digital Connection for iPod, iPhone and iPad on the Front Panel

A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected, even if the receiver is off. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone/iPad music playback functions.

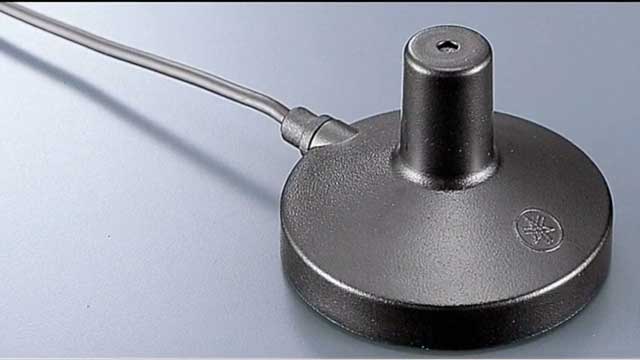

YPAO-R.S.C. (Reflected Sound Control) Sound Optimization with Multi-Point Measurement

YPAO-R.S.C. analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound at any of eight listening positions. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.

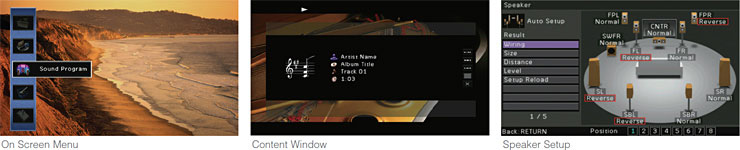

Advanced Multi-Language GUI On-Screen Display

Yamaha's latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of seven languages: English, French, German, Japanese, Russian, Spanish and Chinese, and can be displayed over both normal and 3D pictures.

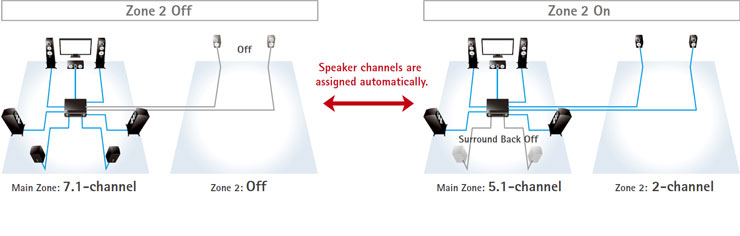

Intelligent Amp Assign

Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 7.1-channel system, when Zone 2 is off, all 7.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two Surround Back channels will be directed to the two speakers in Zone 2, and the Main Zone will receive 5.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two Surround Back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there's no need to switch the speaker cables on the rear of the receiver—one more way Yamaha makes your life a little easier.

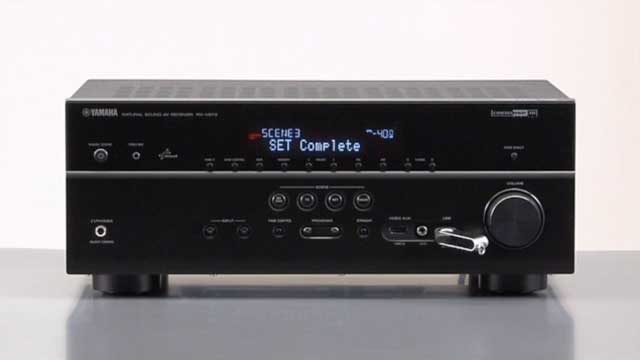

SCENE for One-Touch Start

Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

HDMI Front Panel Input

In addition to the large number of HDMI inputs on the rear panel, there is also one on the front panel. This gives you a convenient way to quickly plug in a digital camera or camcorder for highest quality pictures.

Input Selection in HDMI Standby Through Mode

When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray^TM Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There's no need to turn on the AV receiver in order to switch sources.

HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like Skip and Stop. * All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.

HD Audio with CINEMA DSP 3D and Virtual Presence Speaker

CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.

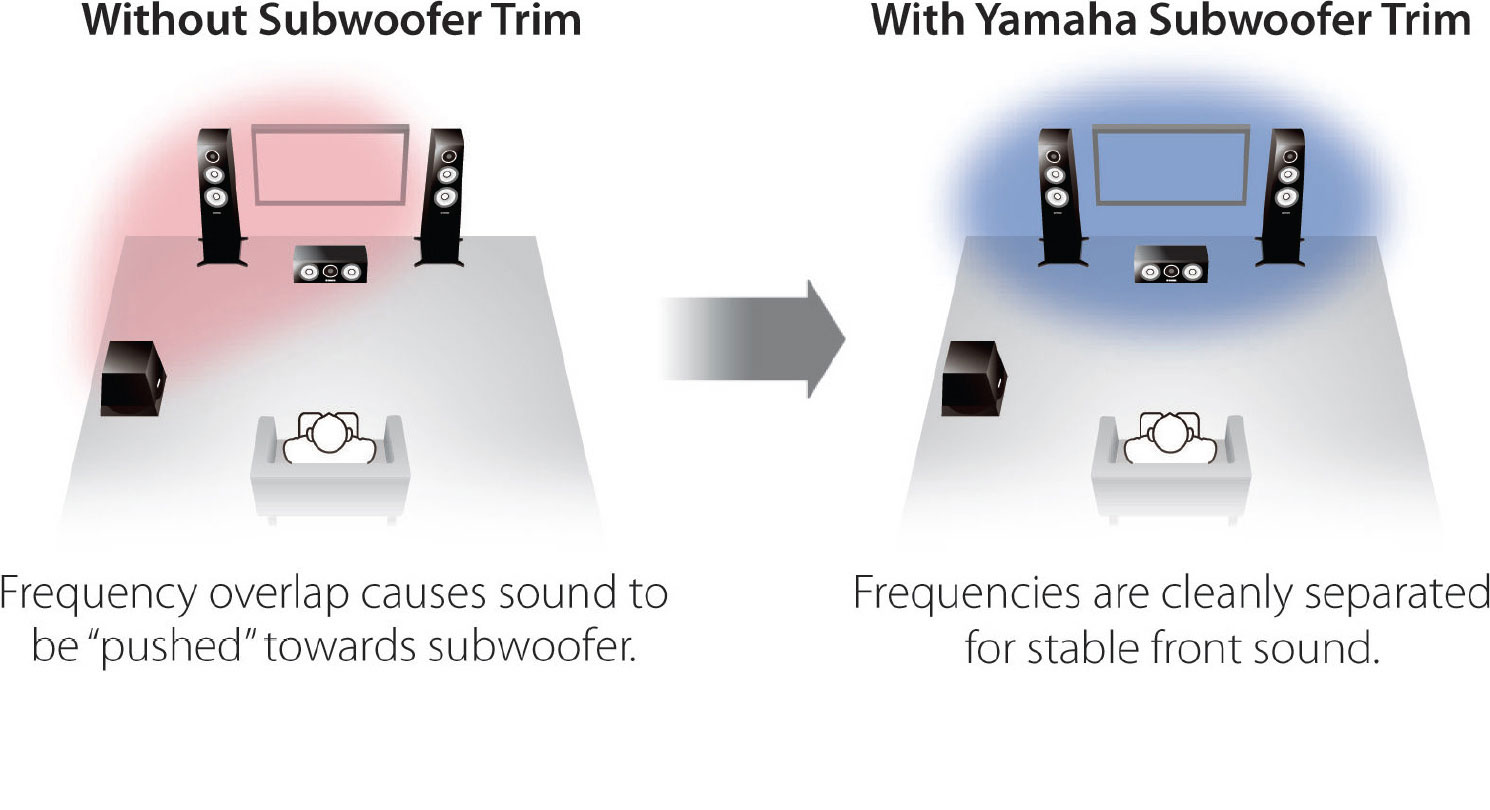

Subwoofer Trim for Improved Sound Imaging

The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals

Dialogue Lift raises the sound of dialogue from the center speaker to a position in the center of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

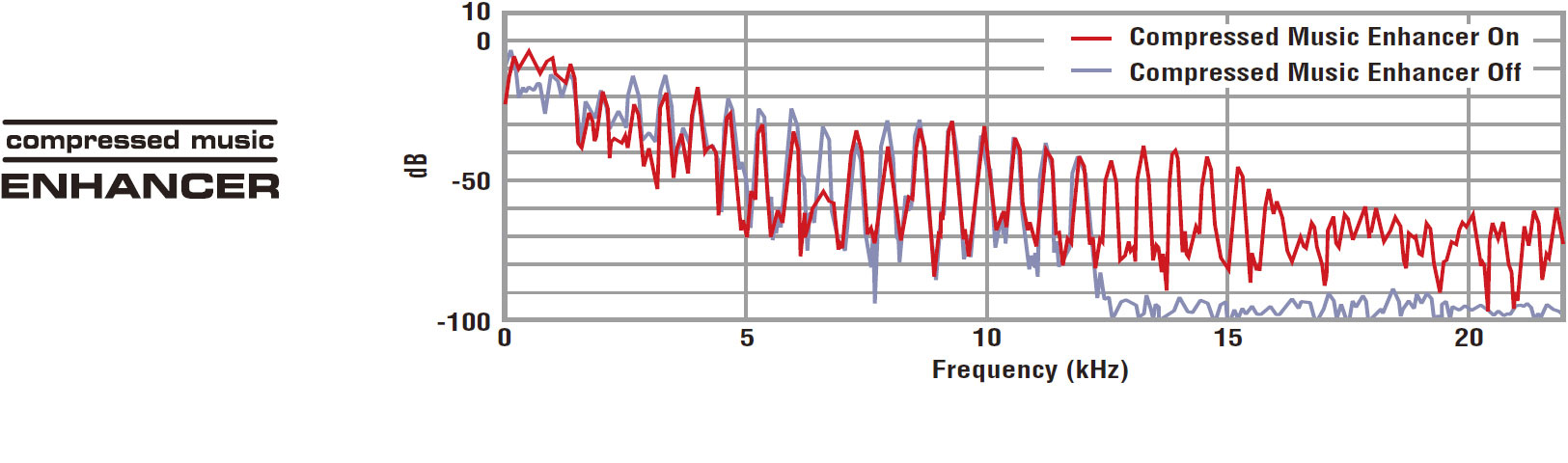

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialog and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.

Versatile Zone Control

• HDMI Zone B for audio/video streaming to another room (same content as main room)
• Zone 2 on/off and control on front panel
• Zone sleep and system sleep
• Party mode
• Remote input/output
• Programmable +12V trigger output

ECO mode lowers power consumption by 20%*

Yamaha's new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
* Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down

Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.

Low Standby Power Consumption

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.1W in IR Standby mode (3W in HDMI Standby Through mode, 2W in Network Standby mode).

Other Notable Video Features

Other Notable Advanced Features

• Charging of iPod, iPhone and iPad via USB when AV Receiver is off
• iPod/iPhone song titles displayed in English and Western European languages on the front panel and on-screen display
• Audio input assign capability for HDMI and component video input
• Audio Delay for adjusting Lip-Sync (0-500 ms)
• Newly designed preset remote unit
• Background Video feature (for tuner and Net)

Other Notable Surround Realism

AirPlay provides the convenience of wireless music playback of your iTunes from iPod/iPhone/iPad and Mac/PC.

Yamaha AV receivers are the perfect control centers for a home entertainment network. Their network functions include support for FLAC 96/24 (high quality lossless format), compatibility with Windows7 and DLNA 1.5 (for finding and playing digital sources) and web browser control from a PC or PDA.

DLNA certification ensures a device has been tested and proven compatible with various CE, PC and mobile devices designed according to the DLNA Interoperability Guidelines. Products certified by DLNA will bear a logo that will give consumers peace of mind that the device they are purchasing has undergone rigorous testing and conforms to the Interoperability Guidelines.

ECO mode reduces power consumption by about 20%*. It can be set easily from the top of the GUI/OSD menu.

*Compared to power consumption when ECO mode is off. (Yamaha measurement).

4K pass-through receives super high-def resolution video and passes it to a 4K compatible monitor. This ensures compatibility with the latest super high resolution video formats.

4K upscaling boosts a lower resolution image to super high-def resolution video. This ensures compatibility with the latest super high resolution video formats.

Yamaha receivers displaying this icon support 3D HDMI pass-through from 3D-compatible Blu-ray Disc, game and broadcast devices to 3D-compatible HDTVs. 3D provides a more engaging audio and video consumer experience when using 3D-capable products and 3D media content. Note that special eyewear may be required for viewing 3D content.

Dolby® TrueHD is Dolby's next-generation lossless technology developed for high-definition disc-based media. Dolby TrueHD delivers tantalizing sound that is bit-for-bit identical to the studio master, unlocking the true high-definition entertainment experience on next-generation discs. When coupled with high-definition video, Dolby TrueHD offers an unprecedented home theater experience that lets you enjoy sound as stunning as the high-definition picture.

DTS-HD® featured products have the ability to decode all streams required for DTS-HD Master Audio™ but may have limitations in channel output and/or sampling frequency; or may utilize unique post processing.

HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all-digital audio/video interface. With the ability to deliver crystal-clear, all-digital audio and video via a single cable, HDMI dramatically simplifies cabling and helps provide consumers with the highest-quality home theater experience. HDMI can provide an interface between most audio/video sources, such as a set-top box, Blu-ray Disc player, DVD player or AV receiver and a video monitor, such as a High-Definition Television (HDTV), over a single cable.

Depending on the model of product, HDMI can support standard, enhanced or high-definition video, plus multi-channel digital audio on a single cable. It can support all currently-available compressed audio formats (such as Dolby Digital and DTS) and most newer HDMI devices can support lossless digital audio formats like Dolby® TrueHD and DTS-HD Master Audio™.

"Made for iPod, iPhone and iPad" means that an electronic accessory has been designed to connect specifically to iPod, iPhone, iPad, and has been certified by the developer to meet Apple performance standards.

This unit allows you to configure a multi-zone audio system. The Zone 2 feature allows you to set this unit to reproduce separate input sources in the main zone and the second zone (Zone 2). You can control this unit from the second zone using the supplied remote control.

The actually measured sound field data contains the information of the height of the sound images. CINEMA DSP 3D mode achieves reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room.

SILENT CINEMA makes it possible to hear large-scale surround sound through ordinary headphones! This is a variation of CINEMA DSP technology that Yamaha developed to let you listen in private to movies and other multi-channel sources for hours without listening fatigue.

Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.

Virtual Presence Speaker mode provides the 3D sound without front presence speakers. Tell customers that the best way to enjoy 3D movies at home is with sound from a Yamaha AV Receiver equipped with CINEMA DSP 3D.

Four SCENE buttons make operating the receiver easier than ever. They are initially set to default settings for DVD viewing, disc listening, TV viewing and radio listening. Pressing a SCENE button automatically launches a number of operations that initiate play of the source controlled by that button. Other SCENE settings are also available, such as iPod listening, XM listening, TV sports viewing and action game playing. Browsing and selecting the settings is quickly accomplished by changing Input via the front panel and watching the on-screen display. The settings can be selected for one-time use or they can replace the original default settings. The SCENE names can be changed, too.

Yamaha's YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!
