Product Archive
|
| This product is discontinued in the United States and may not be available at all dealer locations. |

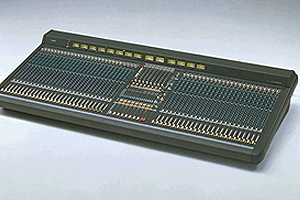

| |  | | 48-Channel Mixing Console |
| |
| | |
| Four stereo input modules standard |
| More modules are optional. |
| Electronically balanced |
| XLR inputs and outputs.
|
| Optional |
| Input and output transformers. |
| All insert In/Out points operate at +4dBu level |
| This is for optimum compatibility with pro equipment. |
| Continuously variable 50 dB Gain trim |
| In addition, switchable 30 dB pad let inputs handle any signal. |
| 6-Step LED meters on each input |
| The LED meters on each input assist correct setup for optimum gain structure. |
| 8 mono auxiliary mixing busses |
| In addition, two pair of stereo aux mixing busses that can be used as dual mono, for total of 12 auxes. |
| 8 VCA groups |
| The groups have mute capability and full-length group faders. |
| 8 primary mix busses ("groups") |
| The mix busses plus a stereo bus which can be "direct assigned" from inputs or from groups. |
| Extensive input-priority |
| It features "in-place" Cue system, plus Solo mode that mutes other channels. |
| Built-in fixed/variable frequency test oscillator and pink noise source. |
| The oscillator and pink noise source speed setup and overall system troubleshooting. |
| Large, dedicated stereo VU meters |
| Also, switchable VU meters for other busses (switching conveniently located next to operator). |
| Hundreds of LEDs |
| The LEDs indicate status, clip levels, and illuminate switches and meters-no lamps to maintain. |
| Extensive internal switches |
| In addition, jumpers to alter "default" console functions. |
| Lower noise than ever |
| It also features superb audiophile quality. |
| Multiple exhaust fans on rear panel |
| These fans keep circuitry cool for maximum longevity. |
| Dimmer-controlled "LittLites" |
| The "LittLites" are provided as standard equipment. |
| Redesigned chassis |
| This is for extraordinary strength and lighter weight. |
| PW4000 Power supply |
| The Power supply includes full-time AC line voltage digital readout and DC output monitor LEDs. |
| Consoles may be interconnected |
| |
|
|
|
